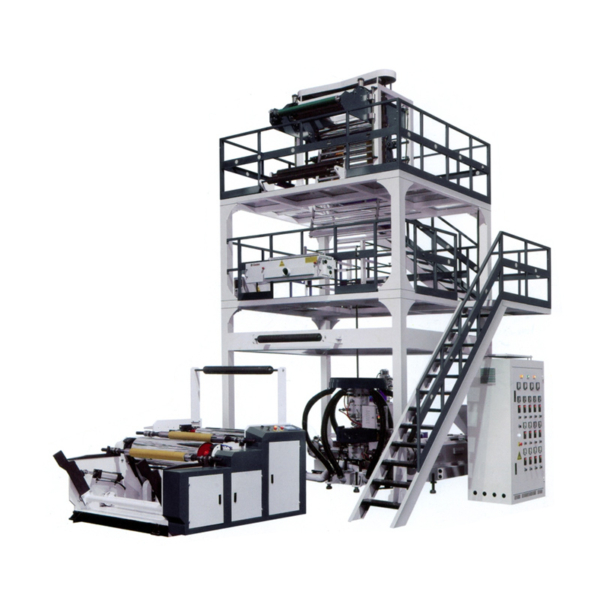

ABA blown film machine, has a unique advantage in the production of HDPE, LDPE and LLDPE material. The physical strength of the film is improved by co-extrusion. Its two hosts supply three-layer extrusion, one to blow internal and extemal coating layer, and the other supplies middle filling layer. It can decrease one of the hosts configuration for the purpose of reducing the cost,and saving energy. At the same time, the middle filling layer can add recycle material and calcium carbonate, which accounts for more than 80% of the total output. It can greatly reduce raw material cost in the process of production and provide customers with stronger market competitiveness.
1.AUTO LOADER
2.CORONA TREATER
3.DIE ROTARY DEVICE
4.AIR COMPRESSOR
5.HIGH SPEED NET CHANGER
ABA blown film machine, has a unique advantage in the production of HDPE, LDPE and LLDPE material. The physical strength of the film is improved by co-extrusion. Its two hosts supply three-layer extrusion, one to blow internal and extemal coating layer, and the other supplies middle filling layer. It can decrease one of the hosts configuration for the purpose of reducing the cost,and saving energy. At the same time, the middle filling layer can add recycle material and calcium carbonate, which accounts for more than 80% of the total output. It can greatly reduce raw material cost in the process of production and provide customers with stronger market competitiveness.
1.AUTO LOADER
2.CORONA TREATER
3.DIE ROTARY DEVICE
4.AIR COMPRESSOR
5.HIGH SPEED NET CHANGER
| Model | SJ-45/2L-ABA | SJ-50/2L-ABA | SJ-55/2L-ABA | SJ-60/2L-ABA |
|---|---|---|---|---|
| Screw Diameter | Ф45×2mm | Ф50×2mm | Ф55×2mm | Ф60×2mm |
| Screw Ratio L/D | 30:1 | 30:1 | 30:1 | 30:1 |
| Screw Speed | 10-120r/min | 10-120r/min | 10-120r/min | 10-120r/min |
| Power of Main Motor | 11kw×2 | 15kw×2 | 18.5kw×2 | 22kw×2 |
| Extrusion Output | 30-70kg/h | 30-80kg/h | 30-100kg/h | 30-120kg/h |
| Thickness of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Max. Folding Width of Film | 600mm | 800mm | 1000mm | 1200mm |
| Overall Dimension(L×W×H) | 5.5×3.7×5.6m | 5.5×4.0×5.8m | 6.2×4.2×6.0m | 6.5×4.4×6.6m |
| Weight of Machine | 3800kg | 4500kg | 5000kg | 4800kg |
Our equipment utilizes high quality materials, advanced technology and strict quality control measures.
And we provide comprehensive support and assistance to our customers, not simply selling products, but also providing cutting-edge technology and services.
Mini type film blowing machine can largely save energy, labor, workshop space, etc. The extruding ,cylinder, screws are made of quality alloy steel with optimum hardness and srtong corrosion resistance after nitrogen treatment and precision processing. The specially designed screw ensures output and good plasticization. It is suitable for blowing low density polyethylene (LDPE) and high density polyethylene (HDPE) and linear low density polyethylene (LLDPE) plastic film, which is widely used in the packing food, clothing, bags, vest bags and etc.
1.AUTO LOADER
2.CORONA TREATER
3.DIE ROTARY DEVICE
4.DOSING DEVICE
5.HIGH SPEED NET CHANGER4
Its extruder, cylinder and screws are made of high quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision processing. The specially designed screw enhances plasticizing of film, which helps increasing the production capacity. It is applied to blowing the plastic films like low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE), It is widely applied to producing the packing bags for foodstuff, clothing, rubbish and so on.
1.AUTO LOADER
2.CORONA TREATER
3.DIE ROTARY DEVICE
4.AIR COMPRESSOR
5.HIGH SPEED NET CHANGER
Three-to-Seven-layer co-extruding upper traction rotation blown film machine unit is designed and developed according to the market demands at the basis of domestic and foreign advanced technology. It is applied to packing with medium and high end film. The film is of well barrier property, retaining freshness, moisture-proof, frost prevention, oxygen proof and oil-proof. So it can be widely applied to the light-weight packing, such as fresh fruits,meat, pickles, fresh milk, drink, medicine, etc.
1.AUTO AIR RING( ADJUST THE THICKNESS OF FILM AUTOMATICALLY)
2.IBC FILM BUBBLE INNER COOLING SYSTEM
3.AUTO THICKNESS MEASURE GAUGE
4.COMPUTER CONTROL SYSTEM
