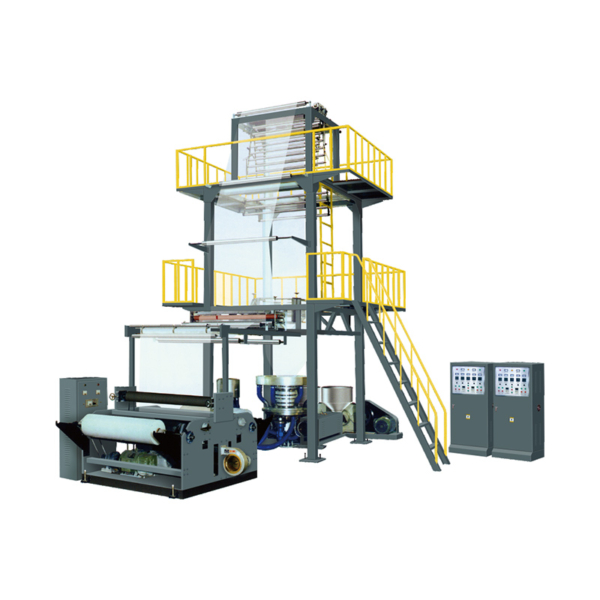

Double Layers Co-extrusion Rotary Die-Head Film Blowing Machine Set

It is used for blowing the plastic laminated film of low density polyethylene (LDPE) , high density polythylene (HDPE) and linear low density polyethylene (LLDPE) etc, which are widely used for liquid packing, printed base material, packaging products for export and industrial packaging, etc.

OPTIONAL EQUIPMENT:

1.AUTO LOADER
2.CORONA TREATER
3.DIE ROTARY DEVICE
4.AIR COMPRESSOR
5.HIGH SPEED NET CHANGER

Product Description

Product Usage:

It is used for blowing the plastic laminated film of low density polyethylene (LDPE) , high density polythylene (HDPE) and linear low density polyethylene (LLDPE) etc, which are widely used for liquid packing, printed base material, packaging products for export and industrial packaging, etc.

OPTIONAL EQUIPMENT:

1.AUTO LOADER
2.CORONA TREATER
3.DIE ROTARY DEVICE
4.AIR COMPRESSOR
5.HIGH SPEED NET CHANGER

MAIN TECHNICAL VARIABLES

ModelSJ-45×2/FM1000SJ-50×2/FM1200SJ-55×2/FM1500
Screw Diameter2×45mm2×50mm2×55mm
Screw RatioL/D28:1L/D28:1L/D28:1
Screw Speed12-120r/min12-120r/min12-120r/min
Main Motor Power2×11kw2×15kw2×15kw
Extrusion Output40-75kg/h50-100kg/h60-120kg/h
Range of DieФ200Ф260Ф350
Rotation Mode of Machine HeadContinuous RotationContinuous RotationContinuous Rotation
Thickness of Film0.02-0.10mm0.02-0.10mm0.02-0.10mm
Max. Folding Width of Film1000mm1200mm1500mm
Total Power52kw63kw75kw
Weight of Machine3500kg4500kg5200kg
Overall Dimension(L×W×H)4.2×2.2×5.5m4.6×2.4×6.5m5.2×2.7×7.0m
